Quick Details

  • Products Status: Stock
  • Application: Camera ,Camcorder ,Film Making
  • Screen Size: 7", 7",IPS
  • Brightness: 400cd/m, 400cd/m2
  • Interface Type: HDMI, YPBPR, SDI, Video ,Audio
  • Contrast Ratio: 800:1, 800:1
  • Resolution: 1280 x 800, 1280x 800
  • Widescreen: Yes
  • Panel Type: IPS
  • Pixel Pitch: 0.117(W) x 0.117(H) mm
  • Brand Name: Goodwell hd-sdi 7 on camera monitor
  • Model Number: A7 hd-sdi 7 on camera monitor
  • Place of Origin: Fujian, China (Mainland)
  • Backlight: LED
  • Aspect Ratio: 16:10
  • Viewing Angle: 89°/89°(L/R), 89°/89°(U/D)
  • Inputs: SDI,HDMI,YPbPr, Video ,Audio
  • Outputs: SDI,HDMI
  • Input Voltage: DC 7V~18V

Packaging & Delivery

Packaging Details: Gift Box
1PC/Box
Delivery Detail: 2-3 Working Days upon payment



Aluminum frame IPS 1280x800 Camera-Top  3G HD-SDI 7 On Camera



Monitor with  3G SDI Waveform Vectorscope Color Histogram Inputs



Product Description

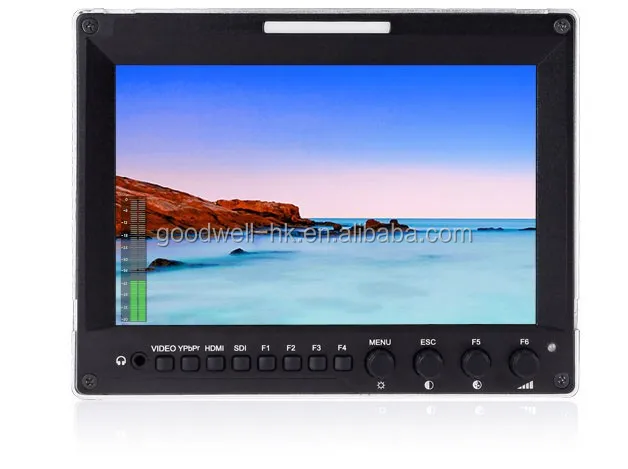

A7 is a portable high resolution on-camera monitor. The A7’s frame is constructed with durable aluminum ,making it perfect for the professional video shooting,the frame have two color silver and black for optional. It is equipped with IPS panel features a native 1280 x 800 resolution that scales to fit HD image, 178° viewing angle without noticeable color or contrast shift,and with Tally Light on the front and rear panel .  A7 provides maximum versatility with multiple inputs: HDMI, 3G/HD/SD-SDI, YPbPr, Audio(L/R), Video and HDMI, 3G/HD/SD-SDI loop-through output, one 3.5mm earphone output socket.   The A7 features waveform (Y, Cb, Cr, R, G, B), full waveform, vector scope, RGB histogram, red/green/blue switchable peaking focus assist, embedded audio meter, zebra exposure, false color mode, check field , rotate and flip, pixel to pixel, camera mode, Center&safe marker. It has been designed for camera-top or desktop as portable professional production monitor.















Main Features :





*Waveform (Y/ Cb/ Cr/ R/ G/ B)



*Vector Scope



*Histogram (Y/ R/ G/ B/ RGB/ Color)



*Focus Assist (Red, Green, Blue three color optional highlight over parts of the image in focus)



*Embedded Audio



*False Color



*Zebra Exposure



*Camera Mode



*Pixel to Pixel



*Center Marker



*Safe Area (80%, 85%, 90%, 93%, 96%, 2.35:1)



*Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)



*Marker Color (Red, Green, Blue, Black, White)



*Check Field ((Red, Green, Blue, Mono



*Image Flip (Horizontal, Vertical, Hor&Ver)



*Image Freeze







1280X800 IPS HD Panel:





With the A7’s 7-inch 1280 X 800 IPS HD panel what you see is truly what you get! The IPS HD Panel delivers near perfect viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The A7’s IPS HD Panel is the tool of choice for high quality color reproduction.







Multi-format Input/ Output :SDI / HDMI / YPbPr / Video / Audio



A7 field monitor supports:



3G/HD/SD-SDI input × 1

3G/HD/SD-SDI loop output × 1

HDMI input × 1

HDMI loop output × 1

Y input × 1

Pb input × 1

Pr  input × 1

VIDEO input × 1

Audio(L/R) input

Speaker and Stereo Headphone output

USB for Upgrade

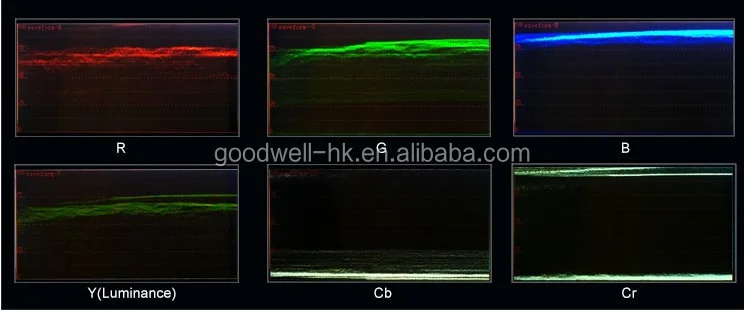

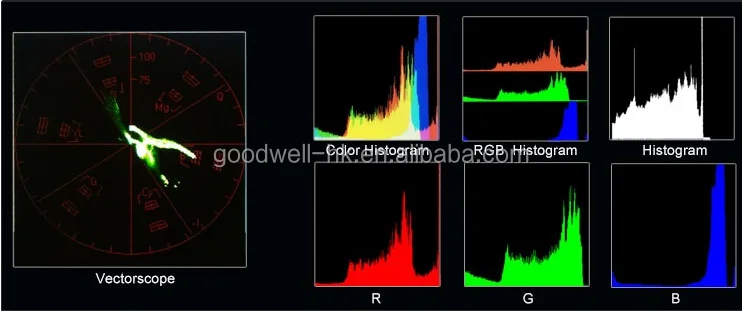

Video Analysis Assistant Pattern:   Waveform / Vector scope / Histogram

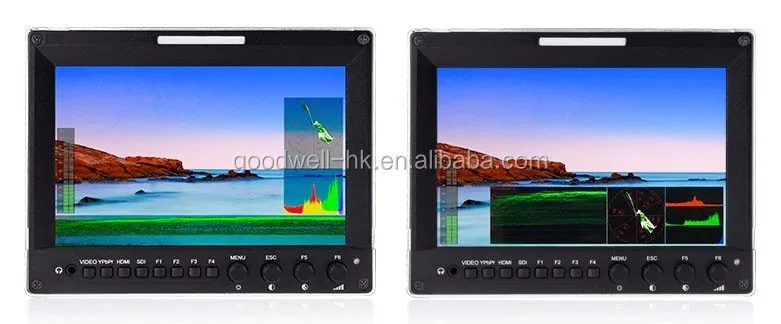

A7 supports Waveforms display under both SDI and HDMI, including Y, Cb, Cr, R, G, B channels, and full scale display of each channel. The Vector scope and Histogram (Y/R/G/B/RGB/Tint) can be switched on/ off independently to the waveforms. And the Waveform,Vector scope and Histogram can adjust background color,black/translucent.





Embedded Audio Monitoring:



    The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays  to prevent errors during monitoring. The audio meter is green,  and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.

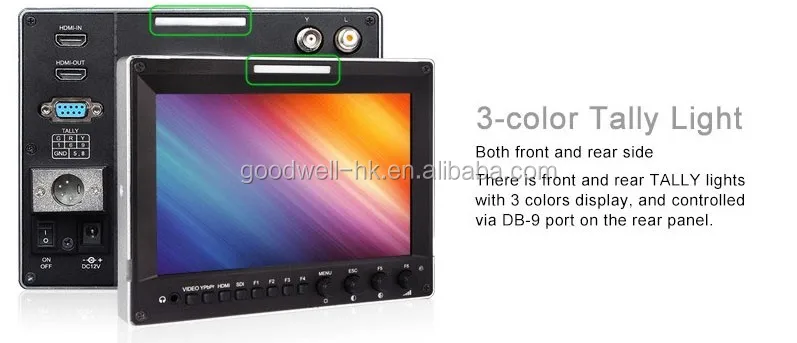

3-color Tally Light :  Both front and rear side



There is front and rear TALLY lights for with 3 colors display (Red,Green,Yellow), and controlled via DB-9  ports on the rear panel.

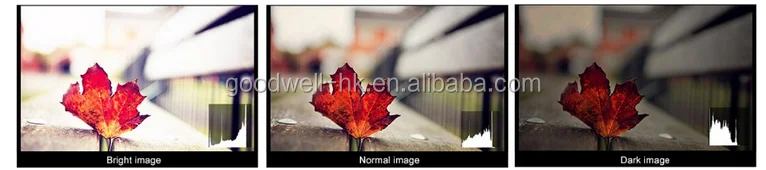

Brightness Histogram:



The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright) and a stack of the number of pixels at each level of brightness along the vertical axis.

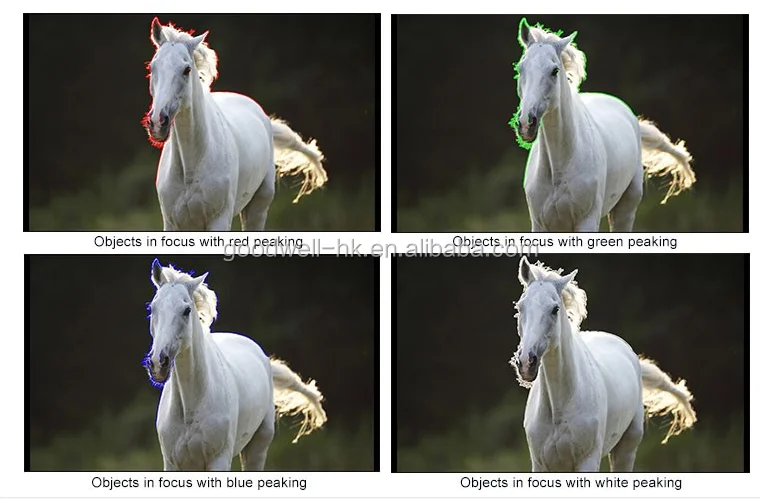

Peaking Focus :

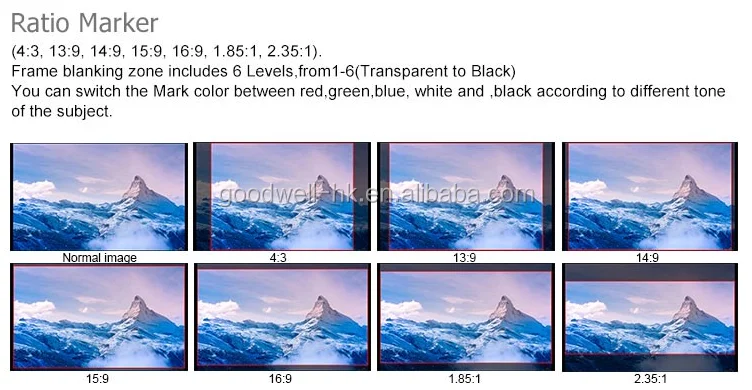

Ratio Marker :

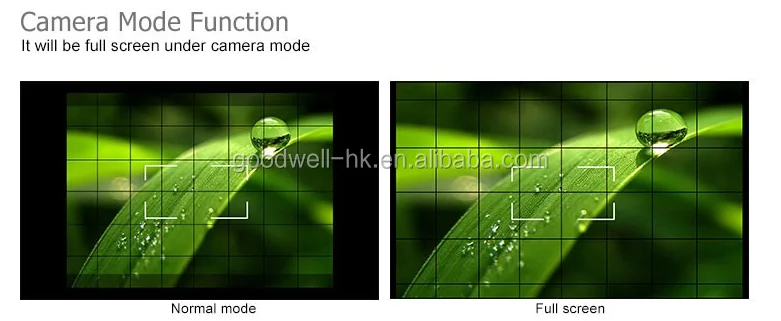

5D II Camera Mode:

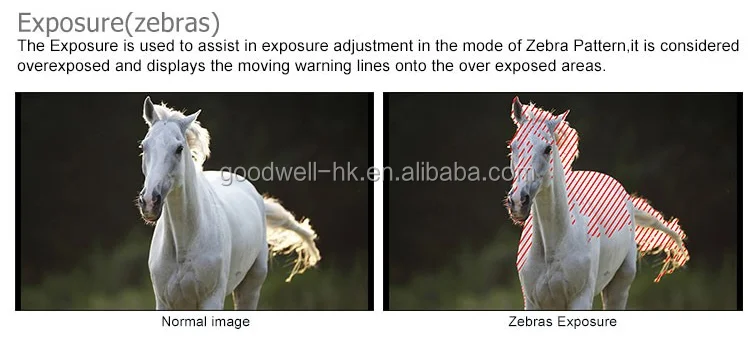

Exposure:




Center and Safe Marker:

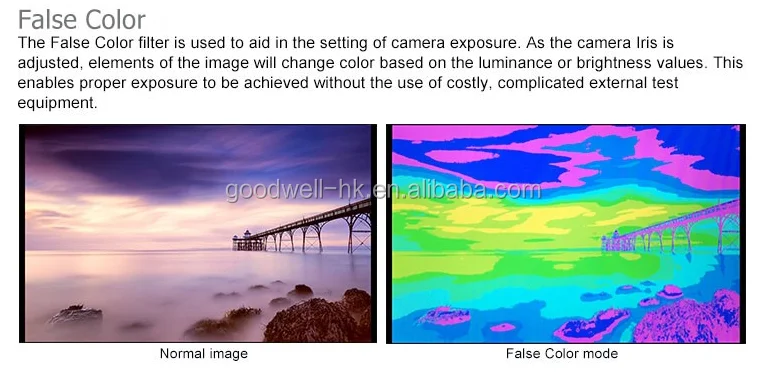

False Color :

 Specifications :

Model Number A7
Screen Size 7",IPS
Resolution 1280x800
Backlight LED
Aspect Ratio 16:10
Contrast Ratio800:1
Brightness 400cd/m2
Viewing Angle  89°/89°(L/R), 89°/89°(U/D)
SDI Support Format  480i/576i, 720p(60/59.94/50/30/29/25/24/23.98),1080i(60/59.94/50), 1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)
HDMI Support Format

480i/576i/480p/576p, 720p(60/59.94/50/30/29/25/24/23.98), 1080i(60/59.94/50)

1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)

Inputs 3G-SDI x1, HDMI x1, YPbPr x1, Video X1, Audio(L/R) x1
Outputs  3G/HD/SD-SDI x1, HDMI x1
Audio Speaker x1, Earphone Slot x1
Histogram Y/ R/ G/ B/ RGB/ Color
Waveform  Y/ Cb/ Cr/ R/ G/ B
Focus Assist Green, Blue, Red three color optional highlight over parts of the image in focus
Ratio Marker 4:3,13:9,14:9,15:9,16:9,1.85:1, 2.35:1
Safe Marker 80%, 85%, 90%, 93%, 96%, 2.35:1
Marker Color  Red, Green, Blue, Black, White
Image Flip  Horizontal, Vertical, Hor&Ver
Check Field  Red,Green,Blue,Mono
Tally  Red, Green, Yellow
Vecscope ,Zebra ExposureYes
False Color ,Embedded Audio Yes
Camera Mode, Pixel to Pixel Yes
Center Marker, Image FreezeYes
Input Voltage  DC 7V to 18V
Power Consumption  12W
Power Connector  DC 12V/ 4-pin XLR
Working Temperature -20~55
Storage Temperature -30~65
Unit Size  180L×140H×26.5D (mm)
Unit Weight  770g



Flexible Battery System:



The A7 has a flexible battery system that supports F970, D28S, E6, V-Mount and Anton Bauer battery plate of your choice.


Standard Accessories :

 1× Sun Shade,

1× F970 Battery Plate

1× Hot Shoe Mount,

1× Mini HDMI Cable

 1× Tally Kit,

1× 7 inch U bracket,

1× Operation Manual
