Quick Details

  • Products Status: Stock
  • Application: TV Broadcasting Trucks, Vehicles Video Surveillance
  • Screen Size: 5" x3, 5 inch x3
  • Response Time: 10ms
  • Brightness: 500cd/m, 500cd/m2
  • Interface Type: HDMI, SDI,Video ,Audio
  • Contrast Ratio: 500:1, 500:1
  • Resolution: 800x480, 800x 480
  • Widescreen: Yes
  • Panel Type: TFT
  • Pixel Pitch: 0.045(W)x0.135(H) mm
  • Brand Name: Goodwell rack mount lcd monitor
  • Model Number: T51 rack mount lcd monitor
  • Place of Origin: Fujian, China (Mainland)
  • Backlight Type: LED
  • Aspect Ratio: 16:9
  • Viewing Angle: 70°/70°(L/,R) 50°/70°(U/D)
  • Inputs: HDMI,3G/HD/SD-SDI,Audio(L/R),Video
  • Outputs: HDMI,3G/HD/SD-SDI,Video,3.5mm Audio Jack
  • Input Voltage: DC 9V~24V

Packaging & Delivery

Packaging Details: 5PCS/CTN
Carton Size: 63.7x 55.2x25.8cm
Delivery Detail: Shipped in 3 days after payment



Made in China T51 Triple 5 Inch  2 RU Rack Mount LCD Monitor with SDI HDMI AV Input ,Metal Frame







Product Description



T51 are extremely thin and lightweight.5" 2RU Rack Monitors with triple 5” 800×480 screens, viewing SD, HD and 3G-SDI video on 2RU rack monitor.GOODWELL Rack mount LCD monitor has been widely used in all levels of TV news production, post production, programme broadcasting and TV broadcasting trucks, special vehicles video surveillance and other fields. Since this series is working with other adjacent professional equipments, therefore, the high stability, high reliability and electromagnetic compatibility are very important conditions to make sure the whole system work smoothly.




The T51 is made of 3× 5-inch TFT LCD panel, with 800×480 resolution and LED backlight, 500cd/m² brightness and 500:1 contrast.The viewing angle is Horizontal: 140° / Vertical: 120°.




Easy to operate, time-saving:

Consistent design style, the same function and operation mode setting is one of the features of the products. Users only need to know one product operation mode, you can operate the full range products, time-saving and convenient.



Multi-format Input/ Output: SDI / HDMI / CVBS / Audio

Each LCD of T51 monitor supports:
3G/HD/SD-SDI input × 1
3G/HD/SD-SDI loop output × 1
HDMI input × 1
HDMI loop output × 1
CVBS input × 1
CVBS output × 1
Audio(L/R) input× 1
Stereo Headphone output× 1
USB for Upgrade





  3-color Tally Light  :

 There are front TALLY lights for each screen, with 3 colors display(Red,Green,Yellow), and controlled via DB-15 ports on the rear panel.




Stablity and Reliability:

As rack mount LCD monitors usually in a continuous working condition, all components including LCD panel must be accordance with industrial quality standard. Full Metal case not only makes the product more robust, and durable, but also is a good solution to the heat dissipation problem.



Main Features:

1. Wide view angle, High resolution 800 x 400, bright, colorful display
2. Slim design and 2RU size
3. HDMI,3G/HD/SD-SDI input and loop-through
4. Special Features:
Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
Check Field (Red, Green, Blue, Mono)
Pixel to Pixel
Center Marker and Safe Marker (80%, 85%, 90%, 93%, 96%,2.35:1)
Image Flip (Horizontal, Vertical, Hor&Ver)
Image Freeze
5. Monitoring via front panel 3.5mm stereo headphone jacks
6. Built-in LED tally indicators (Red, Green, Yellow)
7. Power using included 12-volt supply or use standard 4-pin XLR

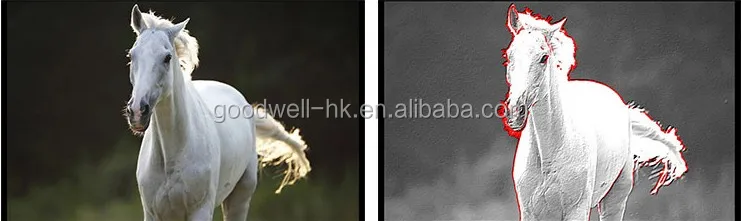

Peaking Focus Assist :

The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture.
When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It’s shows Red highlight over parts of the monochrome image in focus.










Center Marker:





 Dimension :



Specifications :



Model

T51

Screen size

5"x3

Resolution

800×480 pixels

Dot pitch

0.045(W)×0.135(H) mm

Aspect Ratio

16:9

Brightness

500cd/m2

Contrast

500:1

Backlight

LED

Response time

10 ms

Viewing Angle

70°/70°(L/R), 50°/70°(U/D)

Inputs

HDMI,3G/HD/SD-SDI,Audio(L/R),Video

Outputs

HDMI,3G/HD/SD-SDI,Video,3.5mm Audio Jack

SDI Support Format

480i/576i

720p(60/59.94/50/30/29/25/24/23.98)

1080i(60/59.94/50)

1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)

HDMI Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29/25/24/23.98)

1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)

Power Consumption

≤25W

Input Voltage

DC 9V~24V

storage Temperature

-20~ 55

workinging Temperature

-30~ 65

Install Way

Rack Mount

Unit Size

482.6Lx88Hx34D mm

Unit Weight

1570g





Standard Accessories :



1× 3A Power Adapter
1× Tally Kit
1× Operation Manual
